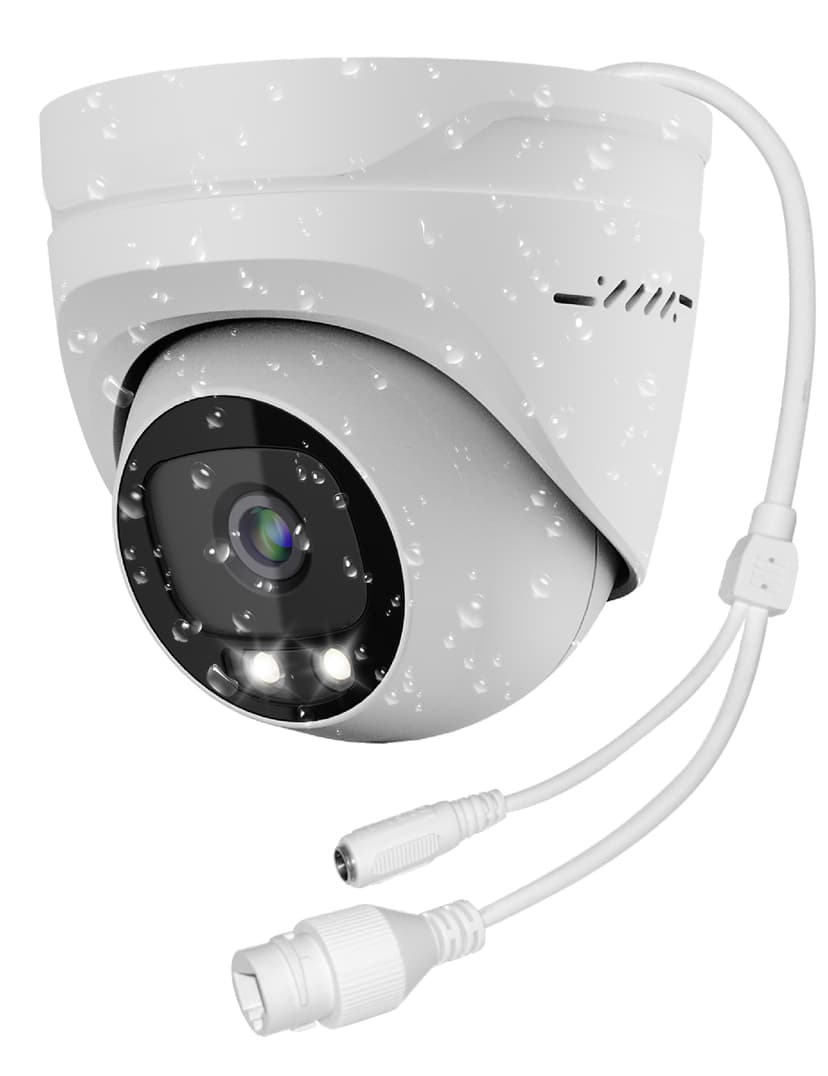

HM-T28BPE1U

8MP Smart Hybrid Light QubeMind Fixed Turret Network Camera
Network CameraLite Series

Features

  • •
    High quality imaging with 8MP resolution
  • •
    Smart hybrid light
  • •
    Human and vehicle classification based on QubeMind
  • •
    120 dB WDR
  • •
    IP67 protection
HM-T28BPE1U - detail 1
HM-T28BPE1U - detail 2
HM-T28BPE1U - detail 3
HM-T28BPE1U - detail 4
HM-T28BPE1U - detail 5
HM-T28BPE1U - detail 6
HM-T28BPE1U - detail 7

Specifications

Image Sensor
1/2.7″ Progressive Scan CMOS
Resolution
3840*2160(8MP)
Video Compression
H.265+/H.265/H.264+/H.264
Min. Illumination
0.003 Lux @ F1.6 (Color, 30IRE)
WDR
120dB
Lens
Fixed focal lens, 2.8 and 4mm optional
FOV
2.8mm: H: 108°, V: 59°, D: 126° 4 mm: H: 89°, V: 47°, D: 107°
Max. Light Range
30m
Smart Function
SMD, intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
Streams
2
Protection Level

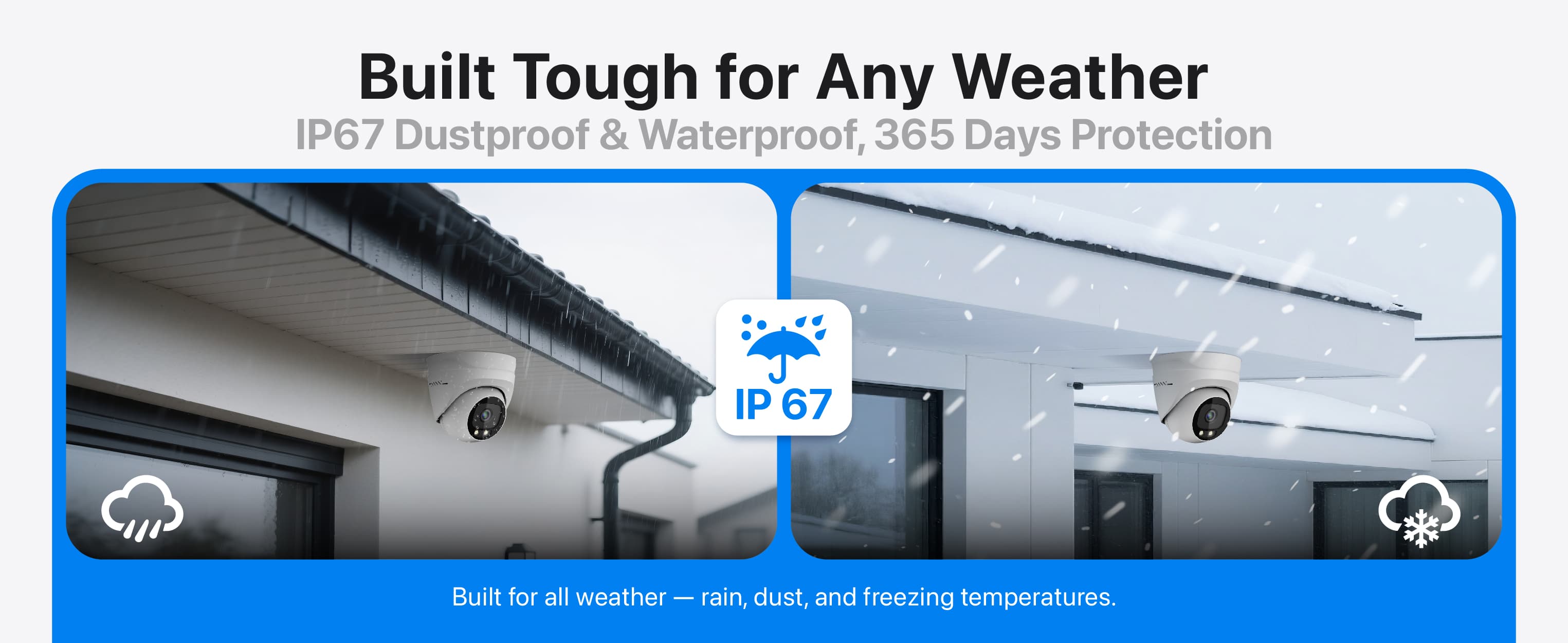

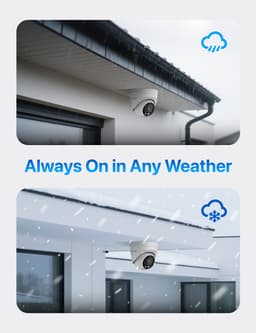

IP67
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 90°,rotate: 0° to 360°
Operating Temperature
-30 °C to 60 °C (-22 °F to 140 °F)
Humidity
95% or less (non-condensing)
Local Storage
256 GB
Indoor/Out-door
Outdoor
Power

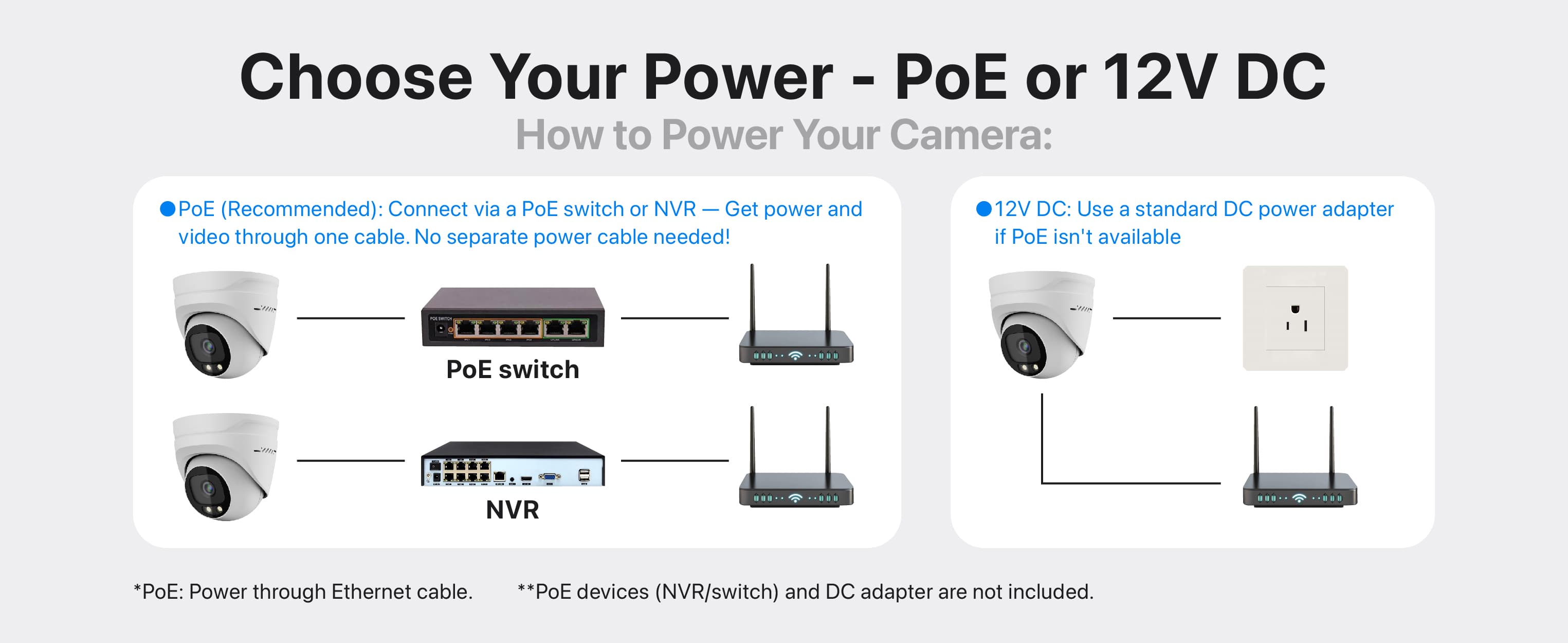

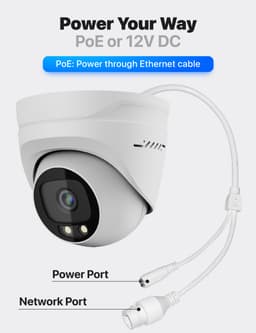

12 VDC ± 25%, PoE: IEEE 802.3af
