IPC-T38-IL(E)

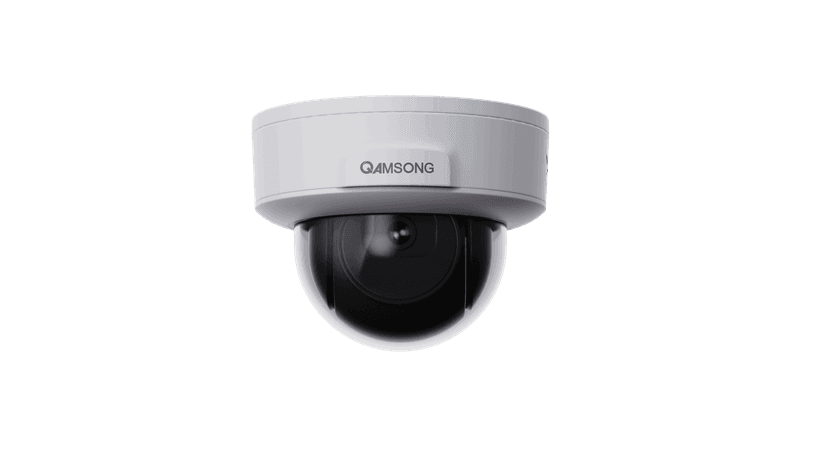

8MP Smart Hybrid Light with Full-color QubeMind Fixed Turret Network Camera (Eco)
Network CameraPro Series

Features

  • •
    High quality imaging with 4MP resolution
  • •
    Smart hybrid light
  • •
    Live defender
  • •
    QubeMind
  • •
    130 dB WDR 3 Streams
  • •
    IP67 protection
  • •
    F1.0 aperture

Specifications

Image Sensor
1/2.8″ Progressive Scan CMOS
Resolution
3840*2160(8MP)
Video Compression
H.265+/H.265/H.264+/H.264
Min. Illumination
0.003 [email protected] (Color, 30 IRE) 0.0003 [email protected] (B/W, 30 IRE) 0 lux (illuminator on)
WDR
130dB
Lens
Fixed focal lens, 2.8 and 4mm optional
FOV
2.8 mm: H: 100°, V: 55°, D: 116° 4 mm: H: 82°, V: 44°, D: 97°
Max. Light Range
40m
Smart Function
SMD, intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human, bicycle) people counting, heatmap, face capture
Streams
3
Protection Level
IP67
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 90°,rotate: 0° to 360°
Operating Temperature
-30 °C to 60 °C (-22 °F to 140 °F)
Humidity
95% or less (non-condensing)
Local Storage
256 GB
Indoor/Out-door
Outdoor
Audio I/O
1/1
Alarm I/O
1/1
Power
12 VDC ± 25%, PoE (802.3af)
